Bobbin Winder Machine
National Textile Engineering Industries, based in Surat, Gujarat, India, is a trusted manufacturer and supplier of high-performance Bobbin Winder Machines designed for smooth yarn winding, uniform bobbin formation, and efficient textile production. Our advanced winding machines are widely used in spinning mills, textile manufacturing units, and yarn processing industries for precise and reliable yarn winding operations.
The Bobbin Winder Machine is engineered to deliver high-speed performance, low yarn tension, reduced yarn breakage, and consistent winding quality. It helps improve production efficiency while ensuring smooth yarn handling and perfectly wound bobbins for further textile processing applications.
Our machines are suitable for cotton yarn, polyester yarn, filament yarn, nylon yarn, and blended yarn materials. Built with durable components and precision engineering, the machine offers stable operation, low maintenance, energy efficiency, and long service life for continuous industrial use.
Technical Specification
| Spindle Pitch | 135 mm |
| Machine Width | 1000 mm |
| Machine Height | 1300 mm |
| Spindle in Section | 20 Nos |
| Winding Speed | Up to 600 Meter / Min |
| Max Take Up Diameter | 90 mm |
| Take Up Capacity | 600 Grams |
| Yarn Tension Device | Disc Tensioner |
| Delivery Package |
Double Flanged Bobbin 100 × 76 / 127 × 85 mm |
| Supply Package |
Pirn Cheese Cone Max 300 mm Diameter & 450 mm Length |
| Operating Panel | D.O.L Starter |
| Traverse System |
Wander Winding With Mechanical Cam Box |
| Oil Roller System | Optional |
| Stop Timer | Optional |
Power Consumption Report
| SR No. | No. Of Section | No. Of Spindle | HP |
|---|---|---|---|
| 01 | 1 - 3 | 20 - 60 | 2 |
| 02 | 4 - 5 | 80 - 100 | 3 |
| 03 | 6 | 120 | 5 |

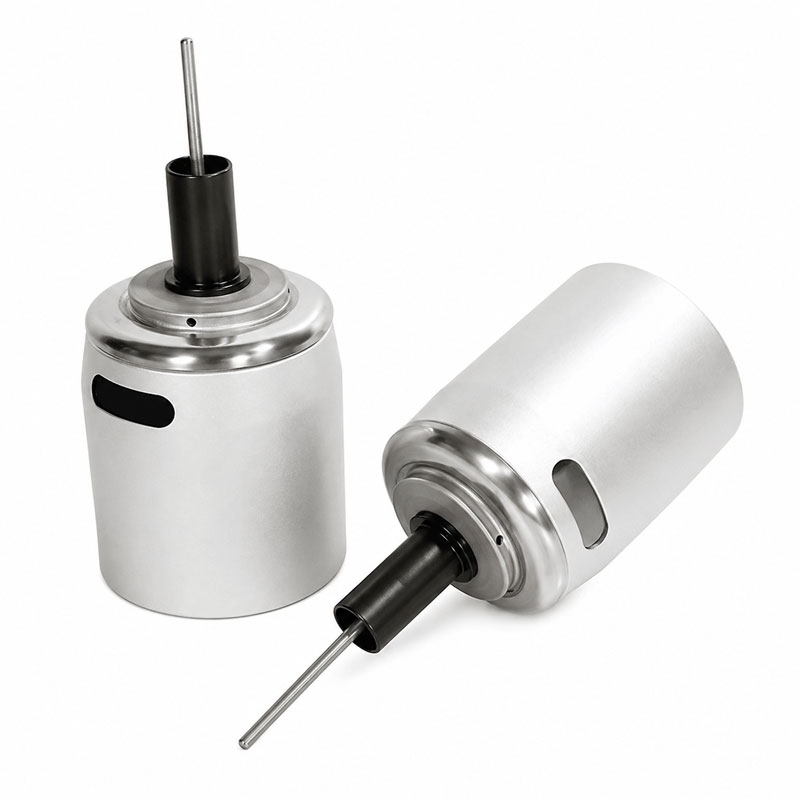

Spindle
The spindles are dynamically designed by keeping energy conservation in mind and optimum reserve area the place where twist are set on yarns which ensure the quality. Spindle are optimized to maximize feed package weight without increasing energy cost.

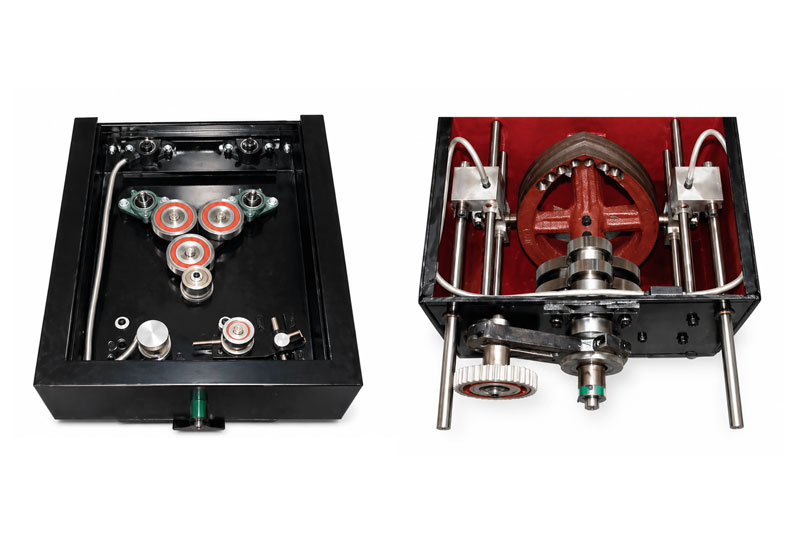

Gearbox & Cambox
Auto oil circulation gearbox box with dedicated motor and pump to ensure continuous lubrication And minimize wear and tear maintenance. Fully oil immersed cambox to reduce mechanical friction, efforts and losses

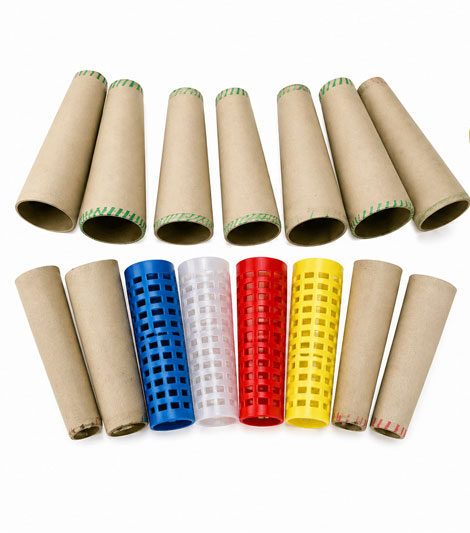

Package Size
Choose from a wide range of roll take-up sizes and direct paper tube take-up options designed to meet diverse production requirements. Depending on the yarn type, application, and end-use package requirements, the take-up package size can be fully customized for optimum performance and handling. Our flexible take-up solutions are engineered to provide better winding quality, improved package stability, and efficient downstream processing.

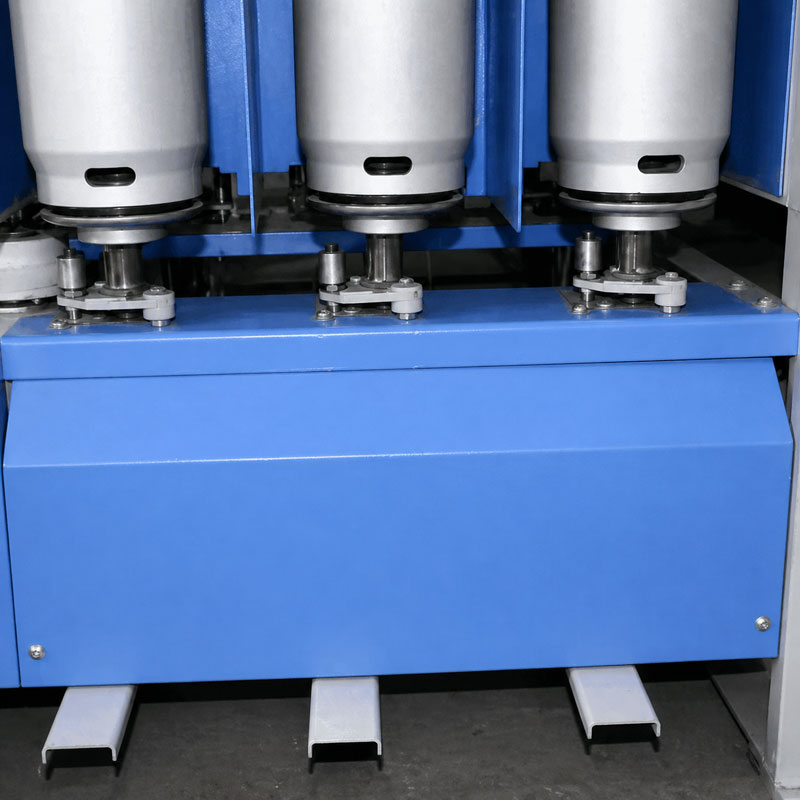

Foot Break
The individual foot brake system allows easy machine operation, reduces labor fatigue, and helps achieve maximum productivity through efficient manpower utilization.
The disengaged drive foot brake completely isolates the spindle when the brake is operated, ensuring uninterrupted productivity of other spindles and eliminating friction on the running belt, thereby improving overall machine life.

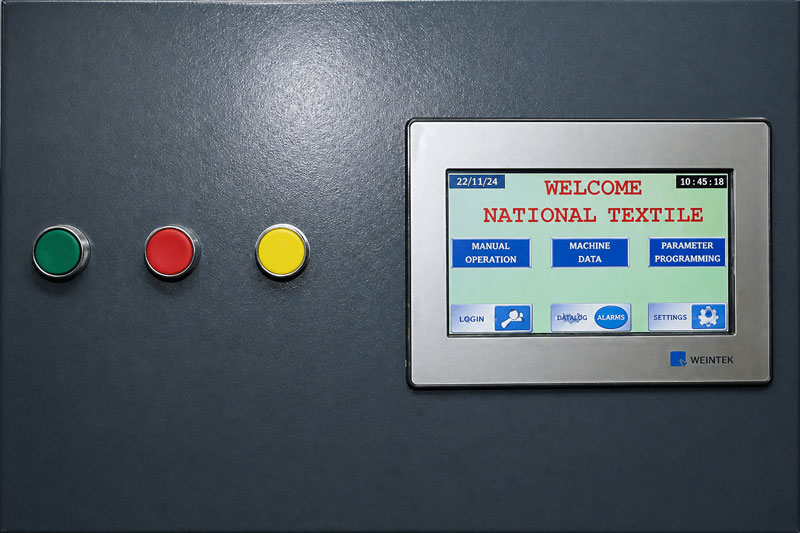

PLC Control System
Plc system with touch screen HMI display to access and control machine working parameters effortlessly just with control of simple touch. Servo motor and servo systems ensures precise and steeples setting of all parameters.
