Hollow Jari Covering Machine
National Textile Engineering Industries, based in Surat, Gujarat, India, is a trusted manufacturer and supplier of high-performance Hollow Jari Covering Machines designed for precise yarn covering, smooth operation, and efficient textile production. Our advanced machines are widely used in the textile industry for producing high-quality jari covered yarn used in sarees, embroidery, decorative fabrics, and fancy textile applications.
The Hollow Jari Covering Machine is engineered with advanced technology to ensure uniform yarn covering, high-speed production, low maintenance, and consistent performance. It is suitable for processing polyester yarn, nylon yarn, metallic yarn, and other fancy yarn materials with superior finishing quality.
Our machines are built with durable components and precision engineering to provide stable operation, reduced yarn breakage, and long service life. Designed for modern textile industries, the machine helps manufacturers achieve better productivity and premium yarn quality.
Technical Specification
| Model | HJH-85 | HJH-100 | HJH-112 | HJH-135 |
|---|---|---|---|---|
| Spindle Diameter (MM) | 6201/20.5 | 6201/20.5 | 6201/20.5 | 6201/20.5 |
| No of Spindle per Section | 40 | 36 | 32 | 32 |
| Spindle Type | One Piece | One Piece | One Piece | One Piece |
| Spindle Blade | En8 Harden | En8 Harden | En8 Harden | En8 Harden |
| Spindle Pitch | 115 | 135 | 145 | 163 |
| Section Length | 1250 | 1330 | 1150 | 1385 |
| Machine Structure |
Shafting Binder -BD Fabrication - SD Sheet Metal - PD |
Shafting Binder -BD Fabrication - SD Sheet Metal - PD |
Shafting Binder -BD Fabrication - SD Sheet Metal - PD |
Shafting Binder -BD Fabrication - SD Sheet Metal - PD |
| Pressure System | With Pressure / Without Pressure | With Pressure / Without Pressure | With Pressure / Without Pressure | With Pressure / Without Pressure |
| Denier Range | 300 | 300 | 300 | 300 |
| Twist Range (TPI) | 400-3000 | 400-3000 | 400-3000 | 400-3000 |
| Takeup Size | 85MM X 155MM ROLL | 100MM X 155MM ROLL | 112MM X 155MM ROLL | 135MM X 165MM ROLL |
| Take Up Package Weight | 500GM | 650GM | 750GM | 850GM |
| M/C Width (MM) | 525 | 525 | 525 | 525 |
| M/C Height (MM) | 2000 | 2000 | 2000 | 2000 |
| Drive Panel | D.O.L / Stardelta | D.O.L / Stardelta | D.O.L / Stardelta | D.O.L / Stardelta |
| Travers System | Mechanical | Mechanical | Mechanical | Mechanical |
Key Features
- Special gun drilled one piece hollow spindle to increase life and ensure the fine quality of jari yarn produced.
- High temperature greasing bearing to maintain the performance of the bearings and spindle and their life.
- Modular sheet metal structure to deliver strong mechanical support and sturdiness and stability at higher speeds.
- Superior shining jari production without flaws, twist variation and shade variation. Consistent quality product and uniform shade throughout package.
- High speed spindle machine designed to make the conversion cost economical.
- Low electricity consumption, helps you fulfill the responsibility of energy conservation & also benefits in reduced production cost.
- Cast iron bearing pedestal to increase life and reduce frequent maintenance.
- 7 tank powder coated process machine structure ensure long life & performance of machine.
Spindle
Specially designed gun-drilled single-piece hollow spindle with an optimized pulley size helps reduce energy consumption while maximizing spindle RPM for higher production efficiency. The spindle is enclosed in a durable housing and fitted with high-temperature grease bearings to ensure smooth and reliable performance at high operating speeds.

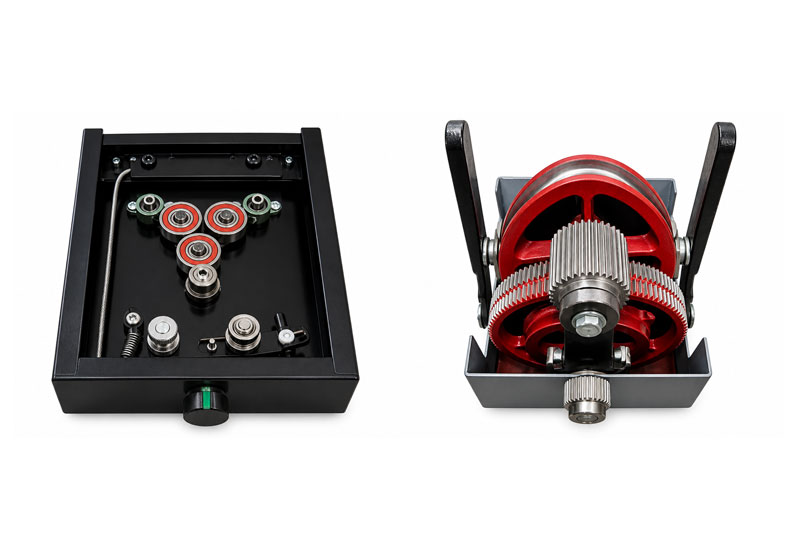

Gearbox & Cambox
Auto oil circulation gearbox box with dedicated motor and pump to ensure continuous lubrication And minimize wear and tear maintenance. Fully oil immersed cambox to reduce mechanical friction, efforts and losses

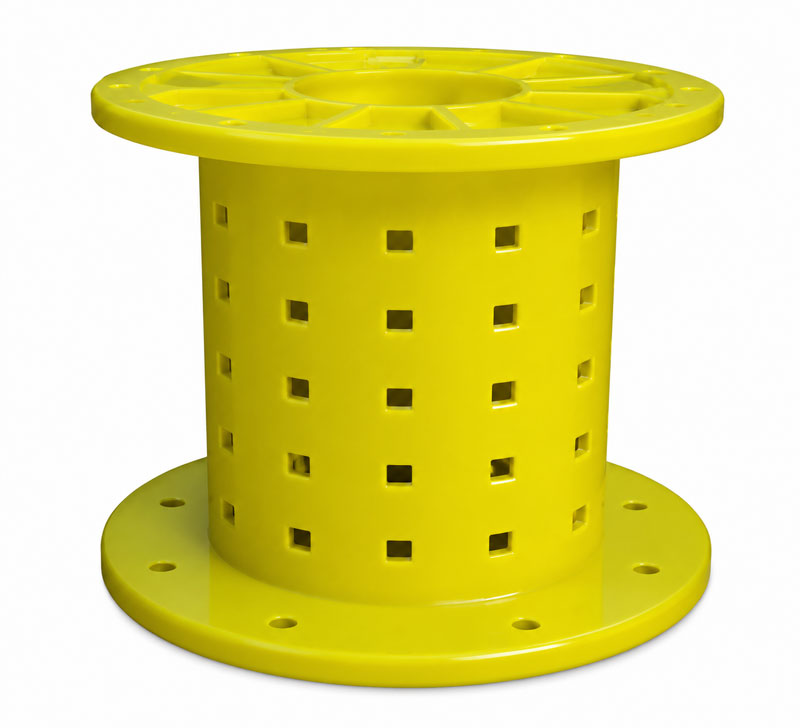

Package Size
A wide range of package size options is available from 350gm to 1kg to meet the requirements of various market segments, including embroidery, narrow fabric, and weaving industries.

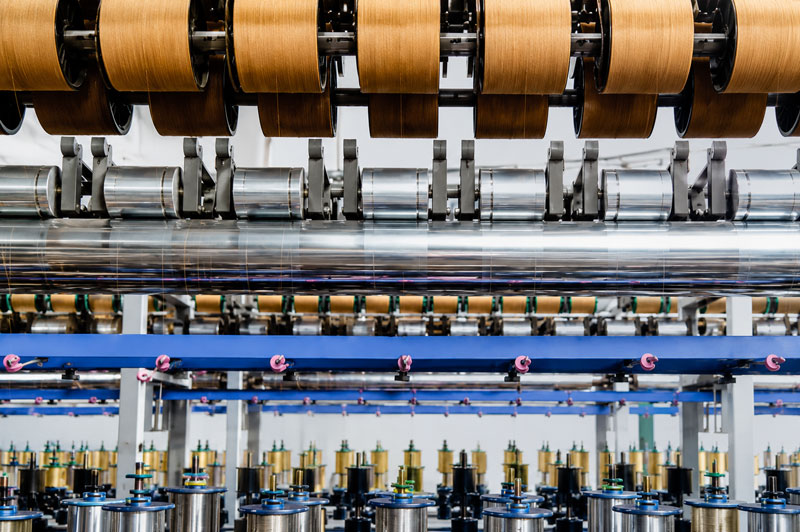

Pressure System
SS pipes with superior surface finishing and extended service life are equipped with hard chrome-coated pressure weight arrangements to provide accurate pressure during metallic covering. This ensures smooth finishing and enhanced shining quality of the jari yarn.
Frequently Asked Questions
What is a Hollow Jari Covering Machine used for?
A Hollow Jari Covering Machine is used for covering metallic jari yarn over different yarn materials to produce high-quality fancy and decorative yarn for textile applications.
Which industries use Hollow Jari Covering Machines?
These machines are widely used in embroidery, saree manufacturing, narrow fabric, weaving, and fancy textile industries for premium jari yarn production.
What are the key benefits of a Hollow Jari Covering Machine?
The machine offers high-speed production, smooth yarn finishing, low electricity consumption, uniform yarn quality, and reduced maintenance for efficient textile manufacturing.
What types of yarn can be processed in the machine?
It is suitable for polyester yarn, nylon yarn, metallic yarn, jari yarn, and other fancy yarn materials used in decorative textile applications.
How does the machine ensure smooth and shining jari quality?
The machine uses precision-engineered hollow spindles, hard chrome-coated pressure arrangements, and stable winding systems to achieve smooth finishing and superior shining yarn quality.
