Plastic Filament TFO Roll Take-Up

National Textile Engineering Industries, based in Surat, Gujarat, India, is a trusted manufacturer and supplier of high-quality Plastic Filament TFO Roll Take-Up systems designed for smooth yarn winding, reliable take-up performance, and efficient textile production. Our advanced take-up systems are widely used in Filament TFO Machines for polyester yarn, nylon yarn, and filament yarn processing applications.

The Plastic Filament TFO Roll Take-Up is engineered with durable and lightweight plastic rolls that ensure stable winding, smooth yarn collection, and consistent package quality during high-speed operation. Its corrosion-resistant construction and low-maintenance design make it an ideal solution for continuous textile manufacturing environments.

Designed for efficient yarn handling and reduced yarn damage, the system helps improve production efficiency while maintaining uniform winding quality. It is suitable for modern textile industries looking for reliable and cost-effective filament yarn take-up solutions.

Technical Specification
HFT 100 PDR 112 PDR 135 PDR
Pot Diameter (MM) 60 / 70 60 / 70 60 / 70 / 80
Spindle Diameter (MM) 60 / 70 60 / 70 60 / 70 / 80
No Of Spindle Per Section 36 36 32
Take Up Size 100MM ROLL 112MM ROLL 135MM ROLL
Spindle Pitch (MM) 135 145 165
Section Length 1330 1405 1385
Max. Spindle RPM UP TO 11000 UP TO 10000 UP TO 10000
Denier Range 30-120 30-150 30-150
Twist Range (TPM) 100-3000 100-3000 100-3000
Takeup System SPINDLE LESS CRADLE SPINDLE LESS CRADLE SPINDLE LESS CRADLE
M/C Width (MM) 650 720 820
M/C Height (MM) 1700 1710 1950
Drive Panel STAR DELTA STAR DELTA STAR DELTA
RPM / TPM Control Panel OPTIONAL OPTIONAL OPTIONAL
Only RPM Control (Inverter Drive Control) OPTIONAL OPTIONAL OPTIONAL
Auto Cradle Lifting OPTIONAL OPTIONAL OPTIONAL
Servo Travers Control System OPTIONAL OPTIONAL OPTIONAL
Overfeed Device CERAMIC TYPE CERAMIC TYPE CERAMIC TYPE
Travers System MECHANICAL / SERVO MECHANICAL / SERVO MECHANICAL / SERVO
MODEL 100PDR 112PDR 135PDR
Spindle Diameter 60/70 60/70 60/70/80
Pot Diameter 60/70 60/70 60/70/80
No. Of Spindle Section 36 36 32
Takeup Size 100MM ROLL 112MM ROLL 135MM ROLL
Spindle Pitch (MM) 135 145 165
Section Length 1003 1405 1385
Max. Spindle RPM UP TO 11000 UP TO 10000 UP TO 10000
Denier Range 30-120 30-150 30-150
Twist System 100-3000 100-3000 100-3000
Takeup System SPINDLE LESS CRADLE SPINDLE LESS CRADLE SPINDLE LESS CRADLE
M/C Width (MM) 650 720 820
M/Height (MM) 1700 1710 1950
Drive Panel D.O.L / STAR DELTA / PLC D.O.L / STAR DELTA / PLC D.O.L / STAR DELTA / PLC
RPM / TPM Control Panel OPTIONAL OPTIONAL OPTIONAL
Only RPM Control (Inverter Drive Control) OPTIONAL OPTIONAL OPTIONAL
Auto Cradle Lifting OPTIONAL OPTIONAL OPTIONAL
Servo Travers Control System OPTIONAL OPTIONAL OPTIONAL
Overfeed Device CERAMIC TYPE CERAMIC TYPE CERAMIC TYPE
Travers System MECHANICAL / SERVO MECHANICAL / SERVO MECHANICAL / SERVO
Key Features
  • High Strength & Durability: Manufactured from high-strength engineering plastics to withstand the high-speed centrifugal forces of TFO machines.
  • Dimensional Stability: Engineered to maintain their shape during high-tension winding and heat-setting processes.
  • Perforated Options: Many TFO rolls are designed with perforations (or as perforated plastic tubes) to allow for even penetration of dyes and heat treatment.
  • Lightweight and Smooth Finish: Lightweight, smooth-surfaced design reduces friction, preventing damage to delicate filaments.
  • Versatile Sizing: Available in various sizes and capacities (e.g., 50-100mm diameters, 75-150mm heights) to suit different yarn counts and machine types.
  • Reusability & Sustainability: 100% recyclable in many cases and engineered for repeated use in industrial environments.
  • Precision Manufacturing: Often produced via injection molding for consistent quality and balanced rotation.

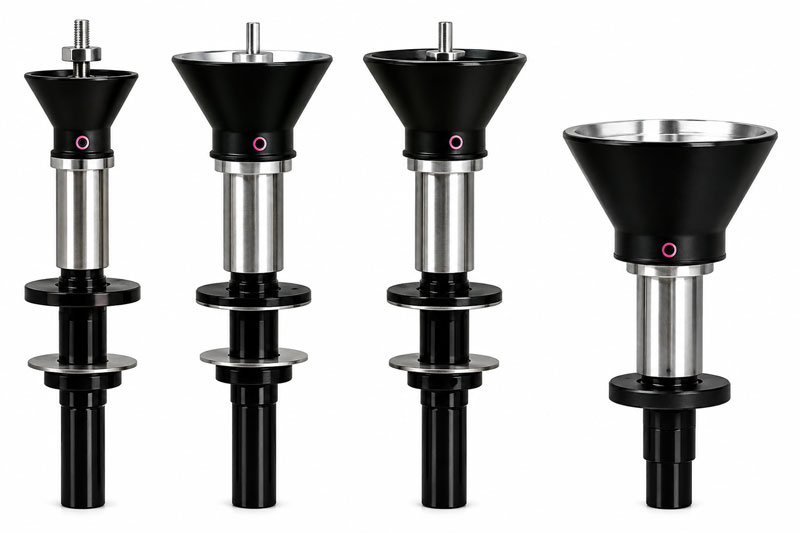

Spindle

Dynamically balanced spindles are available in Stainless Steel, Hard Anodized, and Plasma Coated finishes to meet a wide range of textile industry requirements. Proper spindle size and type selection ensures efficient processing of different yarn types and feed packages with smooth and reliable performance.

Energy-efficient spindle design
Wide range of spindle types and size options available
Gearbox & Cambox

Auto oil circulation gearbox box with dedicated motor and pump to ensure continuous lubrication And minimize wear and tear maintenance. Fully oil immersed cambox to reduce mechanical friction, efforts and losses

Easy operating of gearbox with 6-8 gears covers a wide range of 100-3000 tpm in just 10 min.
Fully manufactured In house to ensure the life long quality performance.
Anti patterning settings for take up package winding

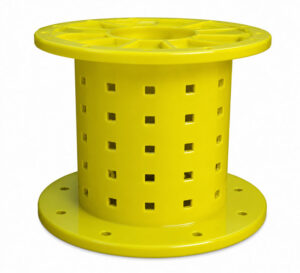

Package Size

Choose from a wide range of roll take-up sizes and direct paper tube take-up options designed to meet diverse production requirements. Depending on the yarn type, application, and end-use package requirements, the take-up package size can be fully customized for optimum performance and handling. Our flexible take-up solutions are engineered to provide better winding quality, improved package stability, and efficient downstream processing.

PLC Control System

Plc system with touch screen HMI display to access and control machine working parameters effortlessly just with control of simple touch. Servo motor and servo systems ensures precise and steeples setting of all parameters.

RPM control for changing rpm for different yarn count.
TPM control to set and change different tpm.
TRAVERS Control to control cross winding angle on takeup package
